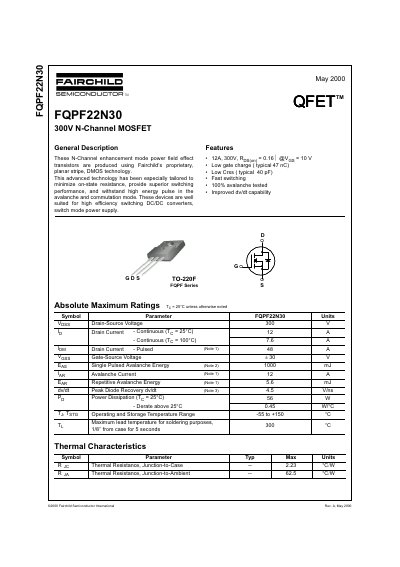

Fairchild FQPF22N30 N-Channel MOSFET Datasheet

This manual introduces the functions and usage of QFET.

Brand: Fairchild
Category: MOSFET
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 738 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 1C78828F594AFB63607C7D80CCB14233
PDF: Fairchild FQPF22N30 N-Channel MOSFET Datasheet PDF

About this manual

This document provides design specifications and technical data for the FQPF22N30, an N-Channel enhancement mode power MOSFET produced using Fairchild's proprietary planar stripe DMOS technology. The device is designed to minimize on-state resistance while providing superior switching performance and high energy pulse withstand capability in avalanche and commutation modes.

What's inside

General Description
Features
Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Package Dimensions

Specifications

Drain-Source Voltage	300 V
Continuous Drain Current (25°C)	12 A
Power Dissipation (25°C)	56 W
Operating Temperature Range	-55 to +150 °C
On-Resistance (Typical)	0.162 Ω

Frequently asked questions

What are the operating and storage temperature ranges for this MOSFET?

The device operates and can be stored within a temperature range of -55 to +150 °C.
