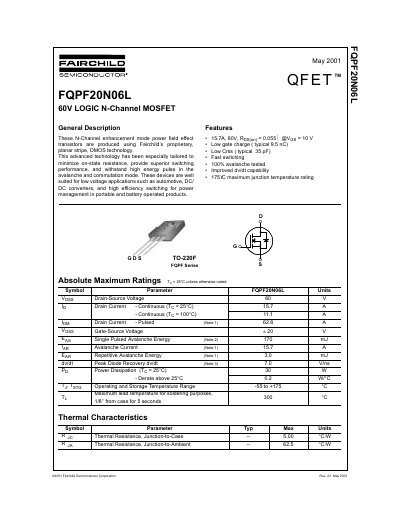

FQPF20N06L is a 60V Logic N-Channel MOSFET. It features 15.7A maximum current, 0.055Ω RDS(on) and low gate charge and is well suited for low voltage applications.
The document describes the Fairchild FQPF20N06L, an N-Channel enhancement mode power field effect transistor produced using proprietary planar stripe DMOS technology. Key features include a low on-state resistance of 0.055Ω at VGS = 10V, fast switching capabilities, and a maximum junction temperature rating of 175°C. This manual is written in Chinese.
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (TC = 25°C) | 15.7 A |
| Maximum Junction Temperature | 175°C |
| Thermal Resistance (Junction-to-Case) | 5.00 °C/W |
The device supports a continuous drain current of 15.7 A when the case temperature is 25°C.
The device has a maximum junction temperature rating of 175°C.
The power dissipation is rated at 30 W when the case temperature is 25°C.
