The NTP4302/D and NTB4302 are N-channel power MOSFETs with low RDS(on) and high efficiency. They are suitable for DC-DC converters, low-voltage motor control, and power management in portable and battery-powered products.

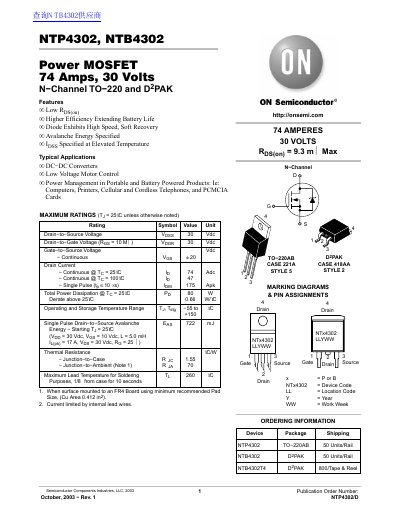

This document is a technical datasheet for the ON Semiconductor N-channel Power MOSFETs, models NTP4302 (TO-220 package) and NTB4302 (D2PAK package). The devices are rated for 74 Amperes of continuous drain current at 25°C and a maximum drain-to-source voltage of 30 Volts. Key features include low on-resistance, high-speed diode soft recovery, and specified avalanche energy.
| Drain-to-Source Voltage (Vdss) | 30 Vdc |
|---|---|
| Continuous Drain Current @ Tc = 25°C | 74 Adc |
| Total Power Dissipation @ Tc = 25°C | 80 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Package Types | TO-220AB and D2PAK |
The component can operate or be stored between -55°C and +150°C.
The maximum drain-to-source voltage is rated at 30 Volts.
