APT15D60B is a bidirectional Schottky diode produced by APT company. It has ultrafast recovery time, soft recovery characteristics, low forward voltage, high blocking voltage and low leakage current. It is used in switchmode power supply, inverter, motor controller, converter, uninterruptible power supply (UPS), induction heating and high speed rectifier.

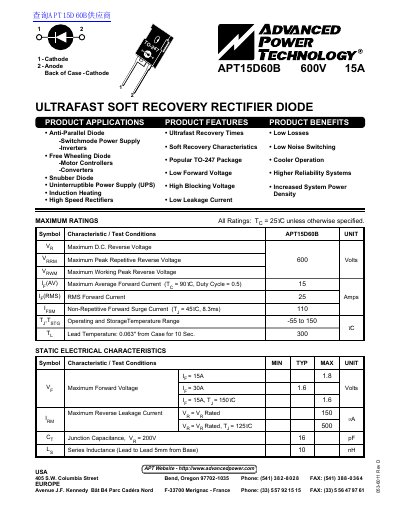

This document is a datasheet for the Advanced Power Technology APT15D60B, an ultrafast soft recovery rectifier diode. It is designed for applications such as switchmode power supplies, inverters, motor controllers, and UPS systems. The device features a popular TO-247 package and offers benefits including low losses, low noise switching, and high blocking voltage.
The datasheet provides comprehensive technical specifications, including maximum ratings for reverse voltage and forward current, static electrical characteristics like forward voltage drop, and dynamic characteristics such as reverse recovery time. It also includes thermal resistance data, mechanical dimensions, and test circuit diagrams for reverse recovery analysis.
| RMS Forward Current | 25 Amps |
|---|---|
| Operating and Storage Temperature Range | -55 to 150 °C |
| Package Type | TO-247 |
The operating and storage temperature range is from -55 to 150 °C.
