The document describes a product with low losses, low noise switching, cooler operation, and higher reliability systems. The product features ultrafast recovery times, soft recovery characteristics, popular TO-247 package, and high blocking voltage.

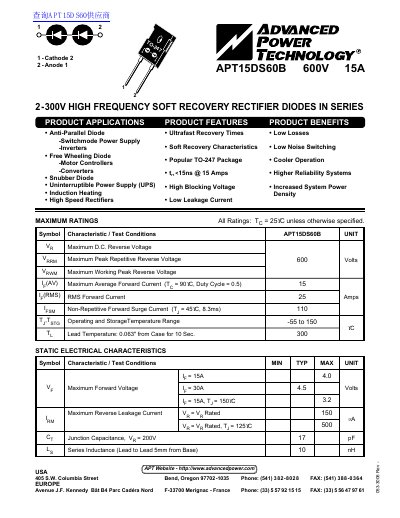

This document is a technical datasheet for the APT15DS60B, a 600V 15A high frequency soft recovery rectifier diode. It details maximum ratings, static and dynamic electrical characteristics, thermal properties, and mechanical dimensions.
The device features ultrafast recovery times with low losses and is designed for applications such as switchmode power supplies, inverters, motor controllers, converters, free-wheeling duties, snubber duties, and uninterruptible power supplies (UPS). It utilizes a popular TO-247 package.
| Maximum Peak Repetitive Reverse Voltage (Varm) | 600 Volts |
|---|---|
| RMS Forward Current (I.(RMS)) | 25 Amps |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Reverse Recovery Time (trr) Typ. | 12.5 ns |
| Junction-to-Case Thermal Resistance (RthJC) | 1.05 °C/W |
| Package Type | TO-247 |
The maximum average forward current at Tj = 90°C with a duty cycle of 0.5 is 15 Amps.
The device uses a popular TO-247 package.
