APT15GT60BR is a high voltage power IGBT. It uses Non-Punch Through Technology

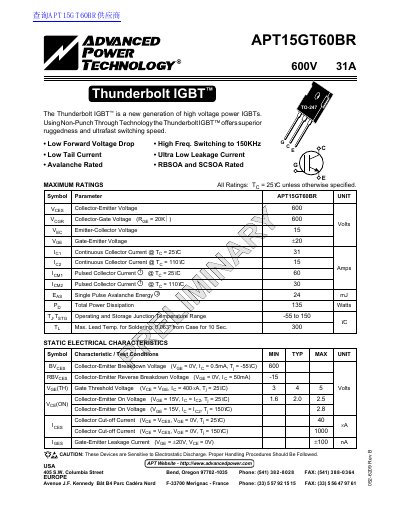

This document is a technical datasheet for the APT15GT60BR Thunderbolt IGBT from Advanced Power Technology. It describes a new generation of high voltage power IGBTs utilizing Non-Punch Through Technology to offer superior ruggedness and ultrafast switching speeds up to 150KHz.
The datasheet provides comprehensive specifications including maximum ratings, static electrical characteristics, dynamic characteristics, and thermal parameters for the device.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current @ Tc = 25°C | 31 A |
| Pulsed Collector Current @ Tj = 26°C | 60 Amps |
| Total Power Dissipation | 135 Watts |
| Operating and Storage Junction Temperature Range | -55 to 150 °C |
The Thunderbolt IGBT offers high frequency switching up to 150KHz.
Yes, the APT15GT60BR is Avalanche Rated.
