2N7228 N-CHANNEL HIGH VOLTAGE POWER MOSFETs are high voltage power MOSFETs produced by ON Semiconductor, USA, with a maximum voltage of 500V and a maximum current of 12A.

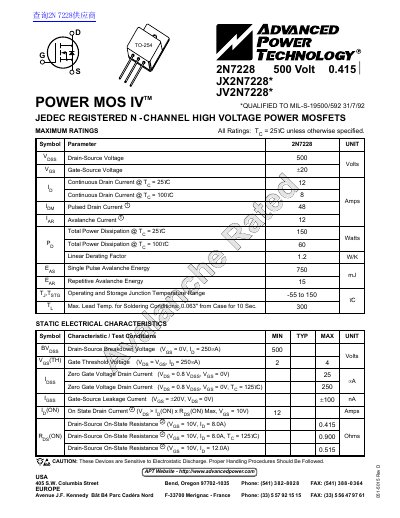

This document is a datasheet for the 2N7228 N-channel high voltage power MOSFET manufactured by Advanced Power Technology. It covers maximum ratings, static and dynamic electrical characteristics, and thermal specifications for the device.
The datasheet includes typical output and transfer characteristics graphs, safe operating area diagrams, and package outline dimensions. It also notes that the device is qualified to MIL-S-19500/592.
| Drain-Source Voltage | 500 Volts |
|---|---|
| Total Power Dissipation @ 25°C | 150 Watts |
The operating and storage junction temperature range is -55 to 150°C.
Yes, the device is qualified to MIL-S-19500/592.
The typical gate threshold voltage is 4 Volts.
