APT15S20KCT 200V 2X25A 053-6037 is a high voltage Schottky diode, with features like low losses, low noise switching, cooler operation, higher reliability systems and increased system power density.

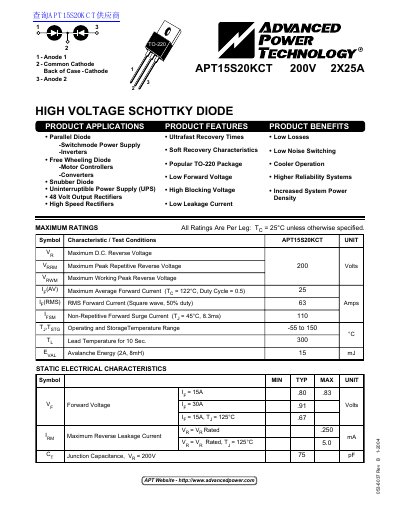

This document is a datasheet for the Advanced Power Technology APT15S20KCT, a high voltage Schottky diode available in a TO-220 package. It is designed for applications such as switchmode power supplies, inverters, motor controllers, and converters, offering features like ultrafast recovery times and low losses.
The datasheet provides comprehensive technical specifications including maximum DC reverse voltage of 200V, average forward current of 25A, and reverse recovery time of 80ns. It also includes dynamic characteristics, thermal resistance values, and typical performance curves for forward current, reverse recovery charge, and junction capacitance.
The maximum mounting torque is 11 Ncm.
