APT15D60K is a fast recovery, soft recovery, low forward voltage, high blocking voltage, low leakage current Schottky diode from APEC, suitable for anti-parallel diode, switchmode power supply, inverters, free wheeling diode, motor controllers, converters, snubber diode, uninterruptible power supply (UPS), induction heating, high speed rectifiers etc.

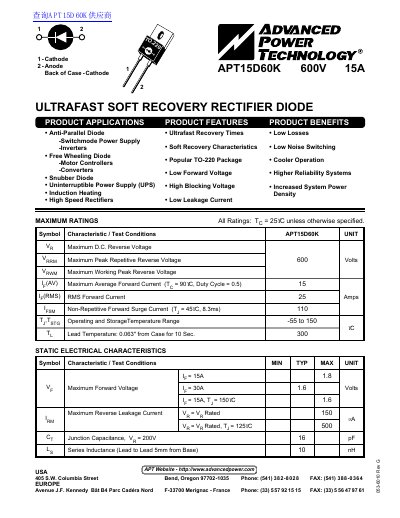

This document is a datasheet for the Advanced Power Technology APT15D60K Ultrafast Soft Recovery Rectifier Diode. It provides maximum ratings, static and dynamic electrical characteristics, thermal data, and mechanical specifications for the component.
The device features ultrafast recovery times and low losses, making it suitable for applications such as switchmode power supplies, inverters, motor controllers, and snubber diodes. The datasheet includes detailed graphs illustrating performance parameters like reverse recovery time versus current slew rate.
| Maximum D.C. Reverse Voltage (Vrrm) | 600 Volts |
|---|---|
| Maximum Average Forward Current (I(AV)) | 15 Amps |
| RMS Forward Current (I,(RMS)) | 25 Amps |
| Non-Repetitive Forward Surge Current (leom) | 110 Amps |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Maximum Forward Voltage (VE) | 1.8 Volts |
| Junction-to-Case Thermal Resistance (Reic) | 2.0 °C/W |
