APT15DS30B is a fast recovery diode produced by APT company. Its features are low loss, low noise, wide operating temperature range and high power density. It is suitable for applications such as switch mode power supplies, inverters, motor controllers, converters, uninterruptible power supplies, induction heating, etc.

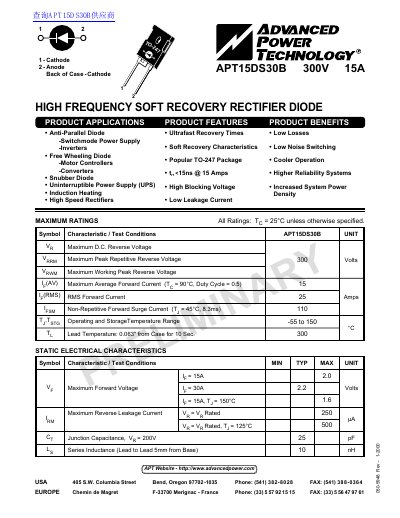

This document is a datasheet for the Advanced Power Technology APT15DS30B, a high frequency soft recovery rectifier diode. The device is designed for applications such as switchmode power supplies, inverters, motor controllers, and converters, featuring ultrafast recovery times and low losses in a TO-247 package.
The datasheet provides maximum ratings, static electrical characteristics, dynamic characteristics, and thermal and mechanical data. It also includes graphical representations of performance parameters such as forward voltage drop, reverse recovery charge, and junction capacitance versus various conditions like current slew rate and temperature.
| RMS Forward Current | 25 Amps |
|---|---|
| Package Type | TO-247 |
The maximum operating and storage temperature range is from -55°C to 150°C.
The device operates and stores within a temperature range of -55 to 150°C.
