The document describes a product with low losses, low noise switching, cooler operation, and higher reliability systems. It features ultrafast recovery times, soft recovery characteristics, and low leakage current.

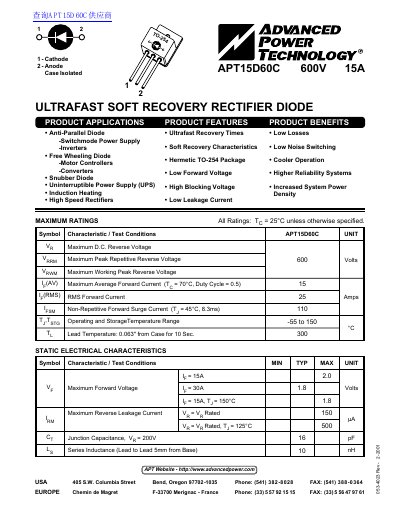

This document is a technical datasheet for the Advanced Power Technology APT15D60C Ultrafast Soft Recovery Rectifier Diode. The device features a hermetic TO-254 package with case isolation and is designed for applications such as switchmode power supplies, inverters, motor controllers, and UPS systems.
The datasheet provides maximum ratings including a 600V reverse voltage and 15A average forward current. It also lists static electrical characteristics like forward voltage drop and junction capacitance, dynamic characteristics such as reverse recovery time, and thermal/mechanical data for the TO-254 package.
| Maximum D.C. Reverse Voltage (VRRM) | 600 Volts |
|---|---|
| RMS Forward Current (IF(RMS)) | 25 Amps |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Junction-to-Case Thermal Resistance (RthJC) | 2.6 °C/W |
The device uses a Hermetic TO-254 Package.
The maximum reverse leakage current (Vago) is 500 µA.
