APT15GP60BDF1 600V is a large power IGBT with low conduction loss, 100 kHz operation @ 400V, 19A, low gate charge, 200 kHz operation @ 400V, 12A, ultrafast tail current shutoff, SSOA rated.
The document describes the APT15GP60BDF1, a new generation high voltage power IGBT utilizing Punch Through Technology. It is optimized for high frequency switching applications and switchmode power supplies.

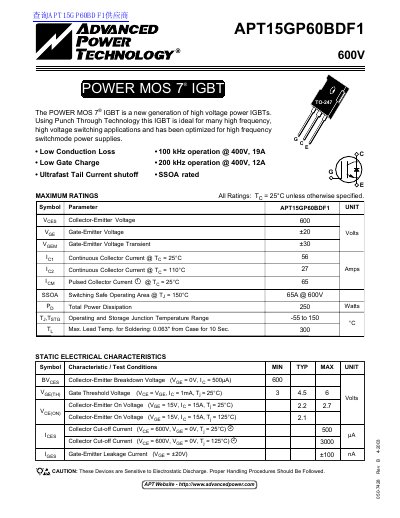

This component combines an IGBT with an ultrafast soft recovery anti-parallel diode in a single package. The datasheet provides maximum ratings, static electrical characteristics, dynamic characteristics, thermal data, and typical performance curves.
| Total Power Dissipation | 250 Watts |
|---|---|
| Operating Junction Temperature Range | -55 to 150 °C |
The APT15GP60BDF1 has a maximum collector-emitter voltage of 600 V.
The device can dissipate up to 250 Watts when the junction temperature is 25°C.
The APT15GP60BDF1 operates and stores within a range of -55 to 150 °C.
