The document describes the characteristics and test conditions of a 400V dual 15A diode, including the maximum DC reverse voltage, maximum peak repetitive reverse voltage, maximum working peak reverse voltage, and maximum average forward current. Additionally, it provides information on the maximum power density and operating temperature range of the product.

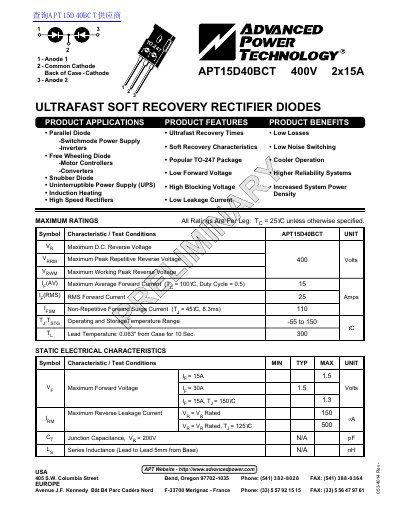

This document is a product datasheet for the Advanced Power Technology APT15D40BCT, an Ultrafast Soft Recovery Rectifier Diode. The device features parallel diodes with low losses and soft recovery characteristics, making it suitable for switchmode power supplies, inverters, motor controllers, and other high-speed rectification applications.
| Maximum D.C. Reverse Voltage (Vrrm) | 400 Volts |
|---|---|
| RMS Forward Current (Irms) | 25 Amps |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Maximum Forward Voltage (VF) | 1.5 Volts |
| Package Type | TO-247 |
