The document describes the features and characteristics of the APT15D30K 300V ultrafast soft recovery rectifier diode, including maximum DC reverse voltage, maximum peak repetitive reverse voltage, maximum working peak reverse voltage, maximum average forward current, RMS forward current, non-repetitive forward surge current, etc.

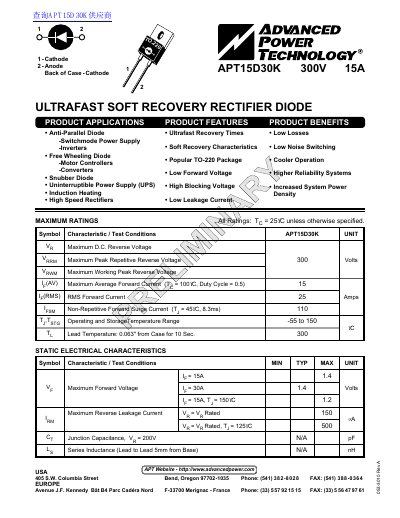

This document is a product datasheet for the Advanced Power Technology APT15D30K Ultrafast Soft Recovery Rectifier Diode. The device features low losses, soft recovery characteristics, and operates in a TO-220 package. It is designed for applications such as switchmode power supplies, inverters, motor controllers, and snubber circuits.
The datasheet provides maximum ratings including a 300V reverse voltage and 15A average forward current. It also lists static electrical characteristics like forward voltage drop and dynamic parameters such as reverse recovery time and junction capacitance.
| RMS Forward Current (Irms) | 25 Amps |
|---|---|
| Operating and Storage Temperature Range | -55 to 150 °C |
