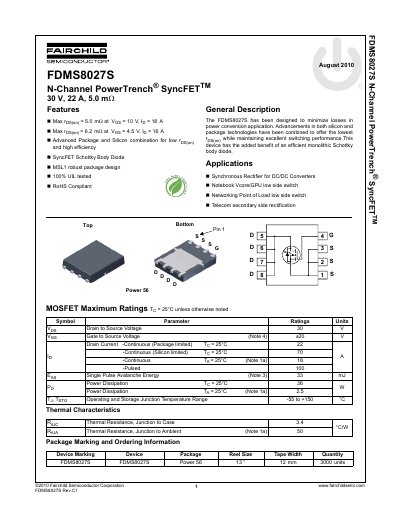

FDMS8027S is a N-Channel PowerTrench® SyncFETTM produced by Fairchild Semiconductor Corporation. Its maximum voltage is 30V, maximum current is 22A, and minimum on-resistance is 5.0mΩ. This device has high efficiency, low on-resistance and good switching performance.
The FDMS8027S is an N-Channel PowerTrench SyncFET designed to minimize losses in power conversion applications. It features a monolithic SyncFET Schottky body diode and is available in a robust Power 56 package. The device is RoHS Compliant and undergoes 100% UL tested quality assurance.
| Drain to Source Voltage | 30 V |
|---|---|
| Power Dissipation | 36 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 3.4 °C/W |
| Static Drain to Source On Resistance (Typical) | 5.0 mΩ |
It is designed for synchronous rectification in DC/DC converters, notebook Vcore/GPU low side switches, networking point of load switches, and telecom secondary side rectification.
Yes, the device is RoHS Compliant.
