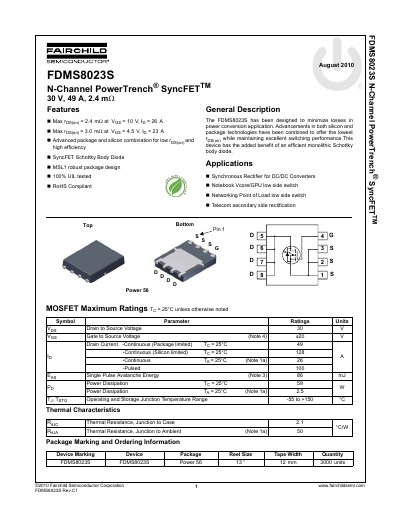

This document introduces the FDMS8023S N-Channel PowerTrench® SyncFETTM, a high-performance synchronous rectifier that can be used for DC/DC converters, notebook Vcore/GPU low-side switches, networking point of load low-side switches and telecom secondary side rectification. This device utilizes the most advanced silicon and packaging technologies to offer the lowest rDS(on) while maintaining excellent switching performance.
The FDMS8023S is an N-Channel PowerTrench SyncFET designed to minimize losses in power conversion applications. It features high efficiency and a robust package design, utilizing Fairchild's SyncFET process which embeds a monolithic Schottky body diode parallel with the MOSFET.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Package limited) | 49 A |
| Continuous Drain Current (Silicon limited) | 128 A |
| Power Dissipation | 59 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
The device supports a continuous drain current of 49 A when package limited at 25°C.
The device can operate with a junction temperature ranging from -55 to +150 °C.
The maximum power dissipation is rated at 59 W when the junction temperature is 25°C.
