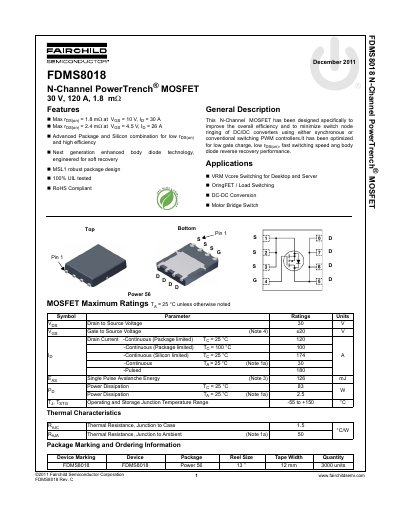

Fairchild FDMS8018 N-Channel MOSFET Datasheet

The FDMS8018 is an N-Channel PowerTrench® MOSFET with a working voltage of 30V, a maximum operating current of 120A, and a maximum on-resistance of 1.8mΩ. It features advanced packaging and silicon material combination for low on-resistance and high efficiency. Additionally, it utilizes next generation enhanced body diode technology for soft recovery. It is suitable for applications such as VRM Vcore switching for desktop and server, OringFET/load switching, DC-DC conversion, and motor bridge switch.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 313 KB
Published: 11 July, 2012
Updated: 28 September, 2023
MD5 checksum: 4033B3B9F17F9485232062C251A1C78F
PDF: Fairchild FDMS8018 N-Channel MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Fairchild FDMS8018, an N-Channel PowerTrench MOSFET designed to improve efficiency and minimize switch node ringing in DC/DC converters. The device features next-generation enhanced body diode technology with soft recovery characteristics.

What's inside

General Description
Applications
Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Dimensional Outline

Frequently asked questions

Is the FDMS8018 RoHS compliant?

Yes, the datasheet states that the device is RoHS Compliant.

What is the maximum continuous drain current at a case temperature of 25°C?

The device supports a maximum continuous drain current of 120 A when the case temperature is 25°C.

What are the operating and storage junction temperature ranges for this MOSFET?

The device operates and stores within a junction temperature range of -55 to +150 °C.

What is the maximum power dissipation at a case temperature of 25°C?

The maximum power dissipation is 83 W when the case temperature is 25°C.
