FDMS7676 N-Channel PowerTrench® MOSFET is a low on-resistance, high efficiency, high switching speed, small package N-channel MOSFET, which is applicable to synchronous or conventional DC/DC converters.

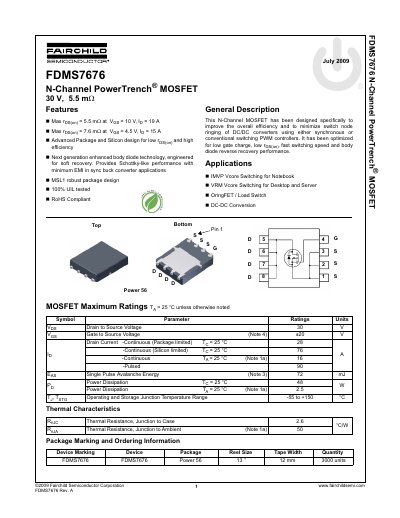

This document is a datasheet for the Fairchild Semiconductor FDMS7676, an N-Channel PowerTrench MOSFET. It is designed to improve efficiency and minimize switch node ringing in DC/DC converters, such as those used in notebook and desktop VRM applications. Key features include a low on-resistance of 5.5 mΩ at Vgs = 10V and advanced body diode technology for soft recovery.
| Drain to Source Voltage | 30 V |
|---|---|
| Drain Current - Continuous (Package limited) | 28 A |
| Drain Current - Continuous (Silicon limited) | 76 A |
| Power Dissipation (Ta = 25 °C) | 2.5 W |
| Thermal Resistance, Junction to Case | 2.6 °C/W |
The operating and storage junction temperature range is from -55 to +150 °C.
Yes, the device is RoHS Compliant.
