The FDMS7698 N-Channel PowerTrench® MOSFET is a high efficiency N-Channel MOSFET with low gate charge, low Rds(on), fast switching speed and body diode reverse recovery performance.

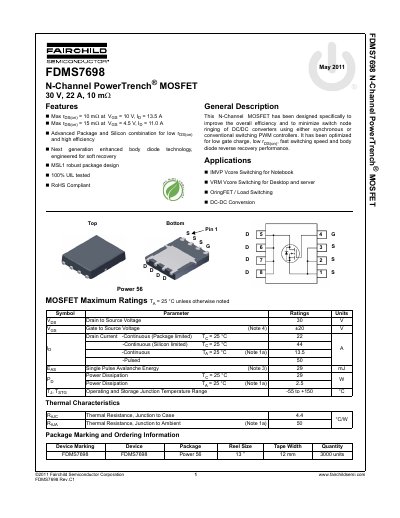

The document describes the Fairchild Semiconductor FDMS7698, an N-Channel PowerTrench MOSFET designed to improve efficiency and minimize switch node ringing in DC/DC converters. Key features include a low on-resistance of 10 mΩ, advanced package design for high efficiency, and a next-generation enhanced body diode engineered for soft recovery technology.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Silicon limited) | 44 A |
| Power Dissipation (Ta = 25°C) | 29 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Case) | 4.4 oC/W |
The MOSFET can operate or be stored within a junction temperature range of -55 to +150 °C.
