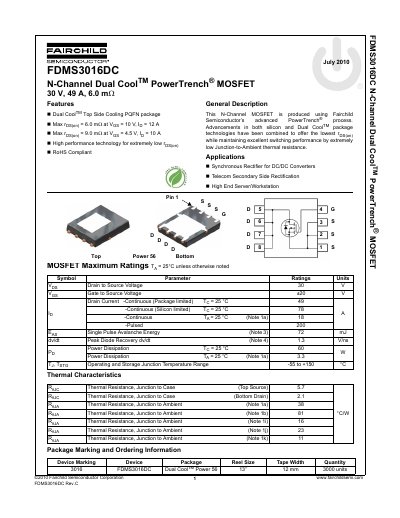

Fairchild Semiconductor FDMS3016DC N-Channel Dual Cool PowerTrench MOSFET Datasheet

About this manual

This document is a datasheet for the Fairchild Semiconductor FDMS3016DC, an N-Channel Dual Cool PowerTrench MOSFET. The device is designed for applications such as synchronous rectifiers in DC/DC converters, telecom secondary side rectification, and high-end server/workstation power supplies. It operates with a maximum drain to source voltage of 30V and a continuous drain current of 49A at 25°C.

What's inside

• Features
• Applications
• Maximum Ratings
• Electrical Characteristics
• Thermal Characteristics
• Typical Characteristics
• Package Marking and Ordering Information
• Dimensional Outline

Frequently asked questions

What are the main applications for the FDMS3016DC?

The device is suitable for synchronous rectifiers in DC/DC converters, telecom secondary side rectification, and high-end server/workstation applications.

What is the maximum continuous drain current for this MOSFET at 25°C?

The maximum continuous drain current is 49 A when the package is limited at 25°C.

What is the maximum power dissipation when the device is mounted on a 2 oz copper pad in still air?

The maximum power dissipation is 3.3 W when mounted on a 2 oz copper pad in still air.

What is the maximum operating junction temperature for this MOSFET?

The maximum operating junction temperature is +150 °C.
