The FDMS3626S PowerTrench® Power Stage 25V Asymmetric Dual N-Channel MOSFET is a dual PQFN package N-channel MOSFET with low on-resistance and high power efficiency. It is suitable for computing, communications, general purpose point of load and notebook PC applications.

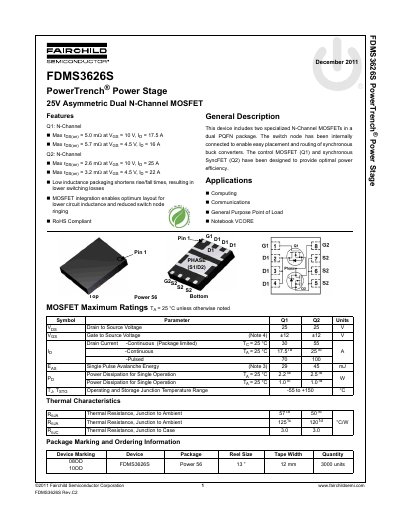

The document describes the Fairchild Semiconductor FDMS3626S PowerTrench Power Stage, which integrates two specialized N-Channel MOSFETs (Q1 and Q2) into a single dual PQFN package. The device is optimized for use in computing, communications, and general-purpose point-of-load applications, particularly as a synchronous buck converter.
| Drain to Source Voltage (VDS) | 25 V |
|---|---|
| Continuous Drain Current (Q1) | 17.5 A |
| Continuous Drain Current (Q2) | 25 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | Dual PQFN |
The maximum continuous drain current for Q1 is 17.5 A at Ta = 25°C.
The operating and storage junction temperature range is -55 to +150 °C.
