FDMS3620S PowerTrench® PowerStage 25V Asymmetric Dual N-Channel MOSFET is a low inductance package MOSFET with enhanced switching performance. It is suitable for computing, communications, power and notebook applications.

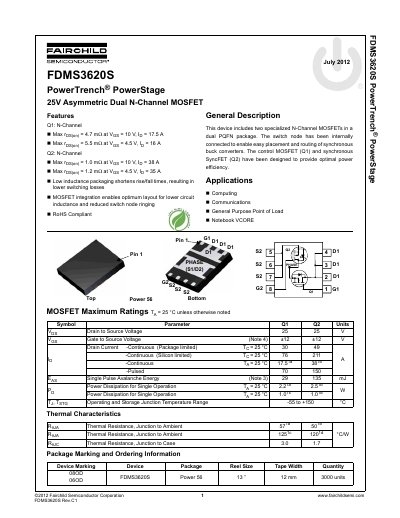

The document describes the Fairchild Semiconductor FDMS3620S PowerTrench PowerStage, which integrates two specialized N-Channel MOSFETs (Q1 and Q2) into a single dual PQFN package. This design facilitates easy placement and routing for synchronous buck converter applications by integrating the control MOSFET and synchronous rectifier.
| Drain to Source Voltage (VDS) | 25 V |
|---|---|
| Continuous Drain Current (Package limited) | 30 A / 49 A |
| Continuous Drain Current (Silicon limited) | 76 A / 211 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case (RθJC) | 3.0 °C/W / 1.7 °C/W |
| Package Type | Dual PQFN |
