This datasheet provides detailed information on the characteristics, specifications, applications of FDMS3008SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM.

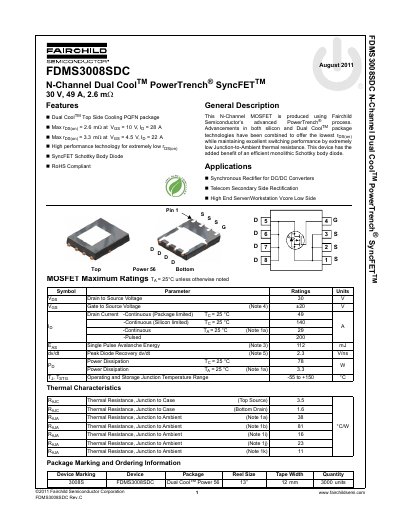

The document describes the Fairchild Semiconductor FDMS3008SDC, an N-Channel Dual Cool PowerTrench SyncFET. This device utilizes advanced silicon and package technologies to achieve extremely low on-resistance while maintaining excellent switching performance.
Key features include a monolithic Schottky body diode for synchronous rectification applications and RoHS compliance. The datasheet provides maximum ratings, electrical characteristics, thermal data, typical performance curves, and dimensional outlines.
| Drain to Source Voltage (Vds) | 30 V |
|---|---|
| Continuous Drain Current (Package limited) | 49 A |
| Continuous Drain Current (Silicon limited) | 140 A |
| Power Dissipation (Ta = 25°C) | 78 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction to Case Top) | 3.5 °C/W |
| Reverse Recovery Time (Typical) | 3 ns |
It is designed for synchronous rectifiers in DC/DC converters and telecom secondary side rectification.
Yes, the document lists it as RoHS Compliant.
