This document describes the features and characteristics of Motorola TMOS Power MOSFET Transistor. These devices utilize Motorola's High Cell Density TMOS process and contain monolithic back-to-back zener diodes, providing protection against ESD and unexpected transients. These miniature surface mount MOSFETs feature ultra low RDS(on) and true logic level performance. They can withstand high energy in the avalanche and commutation modes, and the drain-to-source diode has a very low reverse recovery time. EZFET devices are designed for low voltage, high speed switching applications with a focus on power efficiency. Typical applications include dc-dc converters, power management in portable and battery powered products such as computers, printers, cellular and cordless phones. They can also be used for low voltage motor controls in mass storage products such as disk drives and tape drives.

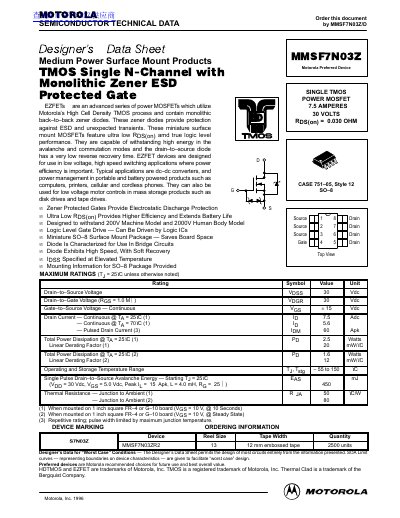

This document is a Designer's Data Sheet for the Motorola MMSF7N03Z, an EZFET device featuring a single N-channel TMOS power MOSFET with a monolithic back-to-back Zener diode for ESD protection. The device is designed for low voltage, high speed switching applications such as DC-DC converters and power management in portable products.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves. Key specifications include a drain current of 7.5A, a drain-to-source voltage of 30V, and an on-resistance of 0.030 ohms. It details switching characteristics, capacitance, and source-drain diode properties to facilitate circuit design under worst-case conditions.
| Drain-to-Source Voltage | 30 V |
|---|---|
| On-Resistance | 0.030 Ohm |
| Package Type | SO-8 |
| Operating Temperature Range | -55 to 150 °C |
Typical applications include DC-DC converters and power management in portable and battery powered products such as computers and printers.
The device supports a continuous drain current of 7.5 Amperes when the ambient temperature is 25°C.
The maximum total power dissipation is 25 Watts when the ambient temperature is 25°C.
The device operates and stores within a temperature range of -55 to 150 °C.
