This document introduces the features and characteristics of 1.5 watt zener diodes, including voltage range, ESD rating, flat handling surface, package design, external dimensions, packaging, etc.

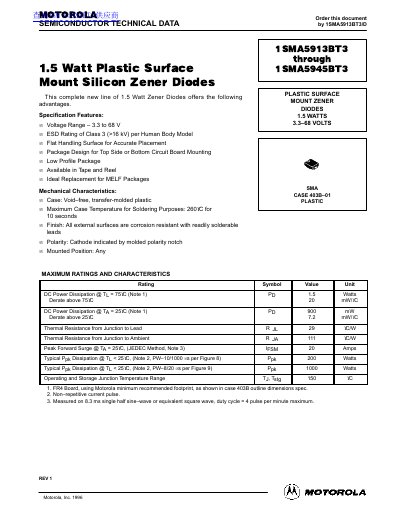

This document is a technical data sheet for a line of 1.5 Watt Zener Diodes by Motorola. It provides detailed specifications, electrical characteristics, mechanical characteristics, and typical performance curves for the 1SMA5913BT3 through 1SMA5945BT3 series.
| DC Power Dissipation @ T L = 75°C | 1.5 Watts |
|---|---|
| Voltage Range | 3.3 to 68 V |
| ESD Rating (Human Body Model) | >16 kV |
| Maximum Case Temperature for Soldering | 260 °C for 10 seconds |
The maximum case temperature for soldering purposes is 260 °C for 10 seconds.
