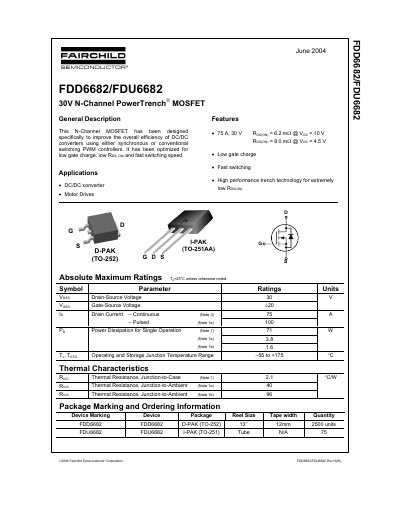

Fairchild FDD6682/FDU6682 30V N-Channel PowerTrench MOSFET Datasheet

FDD6682/FDU6682 30V N-Channel PowerTrench MOSFET is designed to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 121 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 35463D36F625F9E8A98FA06805BE396B
PDF: Fairchild FDD6682/FDU6682 30V N-Channel PowerTrench MOSFET Datasheet PDF

About this manual

This document provides comprehensive technical specifications for the Fairchild FDD6682 (D-PAK) and FDU6682 (I-PAK) 30V N-Channel PowerTrench MOSFETs. Designed to improve efficiency in DC/DC converters, these devices feature low gate charge, fast switching speeds, and a maximum continuous drain current of 75A.

What's inside

General Description
Applications
Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics

Specifications

Drain-Source Voltage (Vdss)	30 V
Operating Junction Temperature Range	-55 to +175 °C
On-State Drain Current (Vgs=5V)	50 A

Frequently asked questions

What is the operating and storage junction temperature range?

The operating and storage junction temperature range is -55 to +175 °C.
