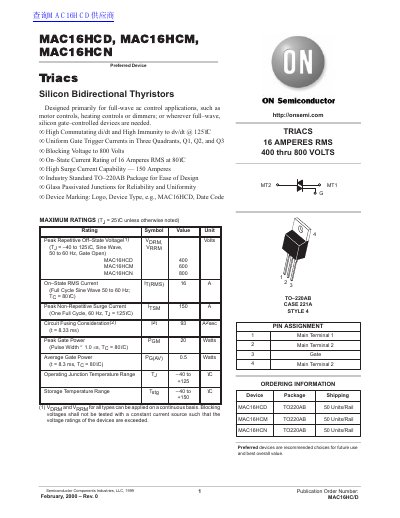

This document introduces the features of the MAC16HC/D silicon bidirectional thyristors. The product features include: high commutating di/dt and high dv/dt immunity, three quadrant uniform gate trigger currents, 800 volt blocking voltage, 16 amperes RMS on-state current rating at 80°C, 150 amperes high surge current capability, TO-220AB standard package, etc.
This document provides technical specifications and ratings for the MAC16HCD, MAC16HCM, and MAC16HCN silicon bidirectional thyristors (Triacs). These devices are designed primarily for full-wave AC control applications, such as motor controls, heating controls, or dimmers. The datasheet covers maximum ratings, electrical characteristics, and thermal properties for all three models.
| On-State RMS Current | 16 A |
|---|---|
| Peak Non-Repetitive Surge Current | 150 A |
| Peak Gate Power | 20 Watts |
| Operating Junction Temperature Range | -40 to +125 °C |
| Package Type | TO-220AB |
The MAC16HCD has a rating of 400 Volts, the MAC16HCM is 600 Volts, and the MAC16HCN is 800 Volts.
These devices are designed primarily for full-wave AC control applications such as motor controls, heating controls, or dimmers.
The Triacs have an on-state current rating of 16 Amperes RMS at 80°C.
These devices feature a high surge current capability of 150 Amperes.
