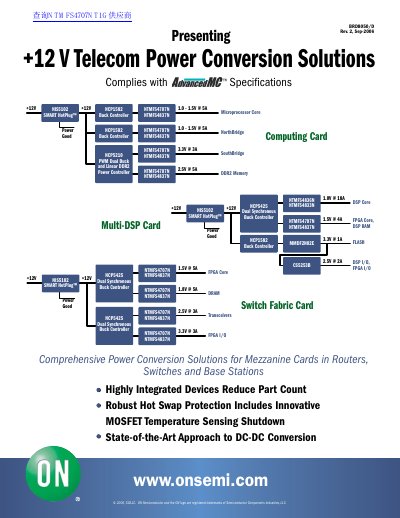

BRD8050/D is a comprehensive power conversion solution for mezzanine cards in routers, switches and base stations. This solution employs highly integrated devices, reducing part count. It also features robust hot swap protection, including an innovative MOSFET temperature sensing shutdown function and state-of-the-art DC-DC conversion technology.
This document presents comprehensive power conversion solutions for mezzanine cards used in routers, switches, and base stations. It highlights highly integrated devices designed to reduce part count and features robust hot swap protection with innovative MOSFET temperature sensing shutdown.
The leaflet details specific components including the NIS5102 SMART HotPlug hot swap protection device, the NCP1582 Low Voltage Synchronous Buck Controller, the NCP5210 3-In-1 PWM Dual Buck and Linear DDR Power Controller, and the NCP5425 Dual Synchronous Buck Controller. It also lists the availability of these devices in various packages such as PDFN-12, SOIC-8, TSSOP-20, QFN-20, and SO-8FL.
| Application | Mezzanine Cards in Routers, Switches and Base Stations |
|---|---|
| NCP1582 Supply Voltage | 5 V or 12 V |
| NCP1582 Output Voltage | as low as 0.8 V |
| NCP1582 Oscillator Frequency | 350 kHz |
| NCP5425 Switching Frequency | up to 750 kHz |
| NCP5425 Reference Voltage | 0.8 V |
The NCP1582 includes short circuit protection (SCP) and under voltage lockout (UVLO).
The NCP5425 offers an adjustable switching frequency up to 750 kHz.
The NCP1582 can produce an output voltage as low as 0.8 V.
