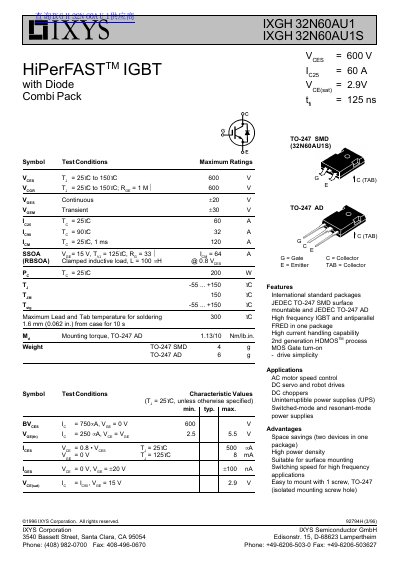

This document describes the features and characteristics of IXYS Semiconductor GmbH's IXGH 32N60AU1 and IXGH 32N60AU1S products, including maximum rated voltage, maximum current handling capability, high frequency IGBT and antiparallel FRED, etc. The products are suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switched-mode and resonant-mode power supplies.
This document is a technical datasheet for the IXYS IXGH 32N60AU1 (and SMD variant 32N60AU1S), which integrates an IGBT and an antiparallel FRED diode in a single TO-247 package. The device utilizes the 2nd generation HDMOSTM process to offer high current handling capability and is suitable for surface mounting.
| Collector-Emitter Voltage (VCESTJ= 25°C to 150 °C) | 600 V |
|---|---|
| Continuous Collector Current (IC25TC= 25°C) | 60 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.9 V |
| Turn-off Time (tfi) | 125 ns |
| Package Type | TO-247 SMD / TO-247 AD |
It is suitable for AC motor speed control, DC servo and robot drives, DC choppers, UPS, and switched-mode power supplies.
Yes, it is available in a JEDEC TO-247 SMD package that is surface mountable.
The maximum junction temperature (TJ) is 150 °C.
