The data sheet provides information on the maximum ratings, thermal characteristics, and electrical characteristics of BC817-16LT1, BC817-25LT1, and BC817-40LT1.

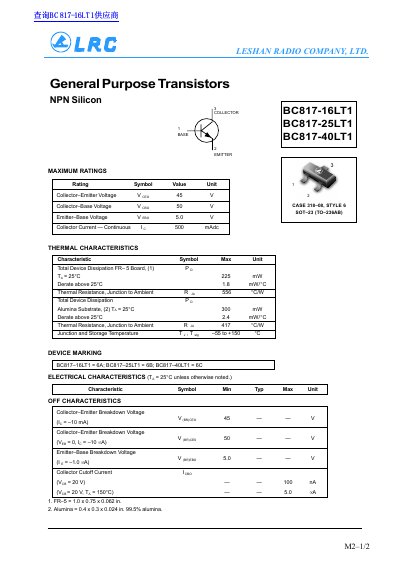

The document is a technical datasheet from Leshan Radio Company, Ltd. covering three specific models of NPN silicon general purpose transistors: BC817-16LT1, BC817-25LT1, and BC817-40LT1.
Key information includes maximum ratings for voltage and current, thermal characteristics such as total device dissipation and junction-to-ambient thermal resistance, and detailed electrical characteristics including DC current gain, saturation voltages, and bandwidth product. The devices are housed in a SOT-23 (TO-236AB) package.
| Collector–Emitter Voltage (V CEO) | 45 V |
|---|---|
| Collector Current — Continuous (I C) | 500 mA dc |
| Thermal Resistance, Junction to Ambient (FR–5) | 556 °C/W |
| DC Current Gain h FE (BC817-40) | 250 (Max) |
The devices are housed in a SOT-23 (TO-236AB) package.
The junction and storage temperature range is from -55 to +150 °C.
