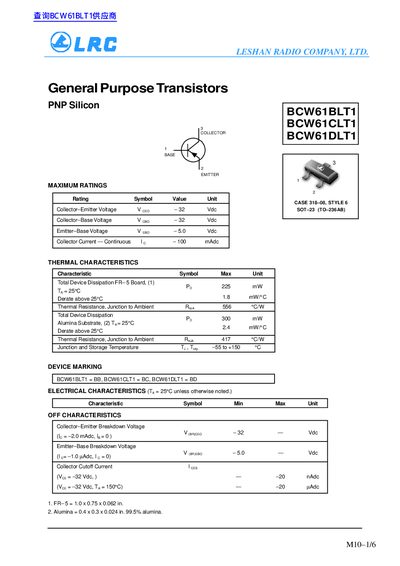

LRC BCW61BLT1 BCW61CLT1 BCW61DLT1 Manual

This data sheet contains BCW61BLT1 data sheet, which mainly contains the maximum rating, thermal characteristics, device marking, electrical characteristics and other information.

Brand: LRC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 252 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: F8B24F608FE8A8CEBB210E4A14AA6B55
PDF: LRC BCW61BLT1 BCW61CLT1 BCW61DLT1 Manual PDF

About this manual

This document provides technical specifications for the JRC BCW61 series of PNP silicon general purpose transistors. The devices are available in three variants: BCW61BLT1, BCW61CLT1, and BCW61DLT1, housed in SOT-23 (TO-236AB) packages. The datasheet details maximum ratings, thermal characteristics, and device marking codes.

What's inside

Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Noise Characteristics
Static Characteristics
Dynamic Characteristics
Thermal Response

Specifications

Collector-Emitter Voltage	-32 Vdc
Collector Current	-100 mAdc
Junction and Storage Temperature	-55 to +150 °C
DC Current Gain (BCW61D)	100 to 100

Frequently asked questions

What is the maximum continuous collector current for these transistors?

The maximum continuous collector current rating is 100 mAdc.

How much power can the device dissipate on an FR-5 board at 25°C?

The total device dissipation is 205 mw when mounted on an FR-5 board.

What are the minimum and maximum junction temperatures for operation?

The junction and storage temperature range from -55 to +150 °C.
