The MC10E/MC100E336 is an integrated circuit that contains three bus transceivers with both transmit and receive registers.

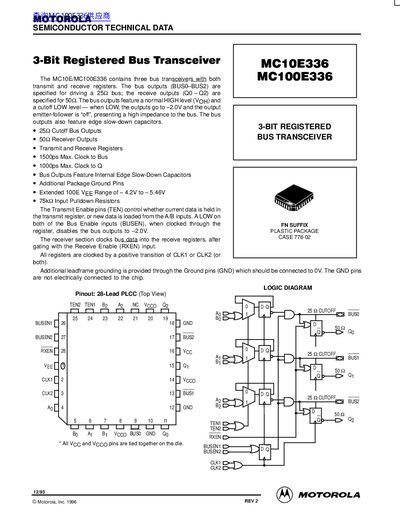

This document is a technical datasheet for the Motorola MC10E336 and MC100E336, which are 3-bit registered bus transceivers. The device contains three bus transceivers with both transmit and receive registers. The bus outputs are specified for driving a 250 bus, while the receive outputs are specified for 500. Key features include cutoff bus outputs that go to -2.0V when low, presenting a high impedance to the bus, and edge slow-down capacitors on the bus outputs.
| Bus Outputs Voltage Level (LOW) | -2.0V |
|---|---|
| Receiver Outputs Voltage Level | 500 |
| Max Clock to Bus Delay | 1500ps |
| Max Clock to Q Delay | 1000ps |
| Package Type | 28-Lead PLCC |
| Package Case Number | CASE 776-02 |
The Transmit Enable pins (TEN) control whether current data is held in the transmit register or new data is loaded from the A/B inputs.
The bus outputs are disabled to -2.0V when both Bus Enable inputs (BUSEN) are LOW and clocked through the register.
The device is available in a 28-Lead PLCC package.
