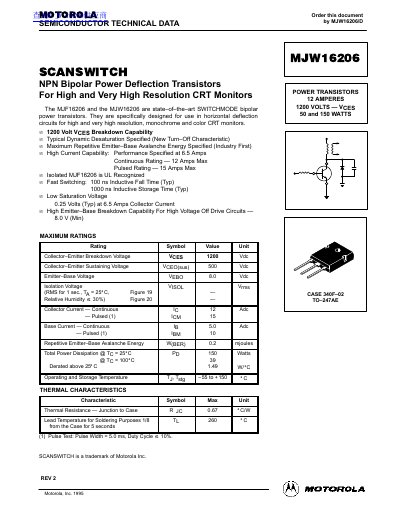

This is a technical datasheet for MJF16206 and MJW16206
The Motorola MJW16206 is an NPN bipolar power deflection transistor specifically designed for use in horizontal deflection circuits for high and very high resolution monochrome and color CRT monitors. It features a 1200 Volt Vces breakdown capability and is part of the SCANSWITCH series.
| Collector-Emitter Breakdown Voltage | 1200 V |
|---|---|
| Collector Current — Continuous | 12 A |
| Total Power Dissipation @ Tc = 25°C | 150 Watts |
| Operating and Storage Temperature | -55 to +150 °C |
| Thermal Resistance — Junction to Case | 0.67 °C/W |
| Inductive Fall Time (Typ) | 100 ns |
It is designed for use in horizontal deflection circuits for high and very high resolution, monochrome and color CRT monitors.
The maximum pulsed collector current is 15 Amps.
The typical dynamic desaturation interval is 250 ns.
