MJW21191 and MJW21192 are bipolar power transistors manufactured by Motorola, specifically designed for power audio output or high power drivers in audio amplifiers.

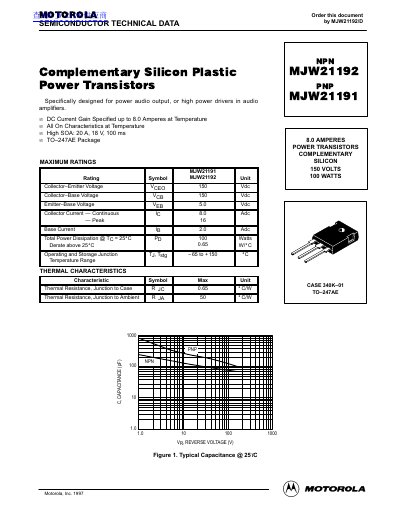

This document provides technical data for the Motorola MJW21192 (NPN) and MJW21191 (PNP) complementary silicon plastic power transistors. These devices are specifically designed for use in power audio outputs or high-power drivers within audio amplifiers, featuring a TO-247AE package.
| Collector-Emitter Voltage (VCEO) | 150 Vdc |
|---|---|
| Emitter-Base Voltage (VEB) | 5.0 Vdc |
| Collector Current — Continuous (Io) | 8.0 Adc |
| Total Power Dissipation @ Tg = 25°C | 100 Watts |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
| Thermal Resistance, Junction to Case (RθJC) | 0.65 CW |
The device supports a continuous collector current of up to 8.0 Amperes.
The total power dissipation is rated at 100 Watts when the temperature is 25°C.
