MJW16212 is a state-of-the-art SWITCHMODE bipolar power transistor. It has 1500 V collector-emitter breakdown capability, typical dynamic desaturation specified (new turn-off characteristic), application-specific state-of-the-art die design, fast switching (200 ns inductive fall time and 2000 ns inductive storage time), low saturation voltage (0.15 V at 5.5 A collector current and 2.5 A base drive), low collector-emitter leakage current (250 µA max at 1500 V VCES), high emitter-base breakdown capability (8.0 V min, for high voltage off drive circuits)

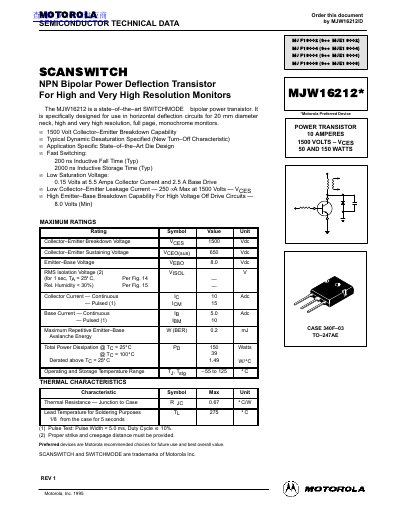

The Motorola MJW16212 is a state-of-the-art SWITCHMODE bipolar power transistor specifically designed for use in horizontal deflection circuits. It targets 20 mm diameter neck, high and very high resolution, full page, monochrome monitors.
Key features include a 1500 Volt Collector-Emitter Breakdown Capability, typical dynamic desaturation specification, fast switching with 200 ns Inductive Fall Time, low saturation voltage of 0.15 Volts at 5.5 Amps, and high Emitter-Base breakdown capability for off-drive circuits.
| Collector-Emitter Breakdown Voltage (Vces) | 1500 Vdc |
|---|---|
| Operating and Storage Temperature Range | -55 to 125 °C |
The typical inductive fall time is 200 ns.
The maximum collector-emitter leakage current is 250 µA.
The device has a high emitter-base breakdown capability of 8.0 Volts (Min).
