This data sheet provides the maximum ratings for the 1.5 kV SWITCHMODE series bipolar power transistors, including collector-emitter voltage, collector-emitter saturation voltage, emitter-base voltage, emitter-base saturation current, collector current, and emitter current.

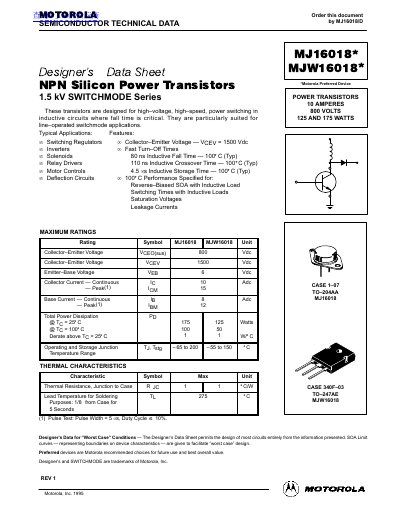

This document is a Designer's Data Sheet for the Motorola MJW16018*, an NPN Silicon Power Transistor designed for high-voltage, high-speed switching applications. It is part of the SWITCHMODE Series and is optimized for inductive circuits where fast fall time is critical.
| Collector-Emitter Voltage (VCEO) | 800 Vdc |
|---|---|
| Collector-Emitter Voltage (VCES) | 1500 Vdc |
| Continuous Collector Current | 12 Adc |
| Total Power Dissipation (Tc=25°C) | 175 Watts |
| Operating Junction Temperature Range | -65 to 200 °C |
| Thermal Resistance, Junction to Case (Rac) | 1.1 CW |
The device supports a maximum collector-emitter sustaining voltage of 800 Vdc and a peak collector-emitter voltage of 1500 Vdc.
The transistor has a typical inductive fall time of 80 ns when operating at 100°C.
The device can dissipate up to 175 Watts when the case temperature is maintained at 25°C.
