MJ16110/MJW16110 is a bipolar power transistor launched by Motorola. Its maximum collector-emitter sustaining voltage is 400V, and its maximum collector-emitter breakdown voltage is 650V. This transistor is specially designed for half-bridge and full-bridge offline converters, and has good dynamic saturation characteristics and rugged RBSOA capability.

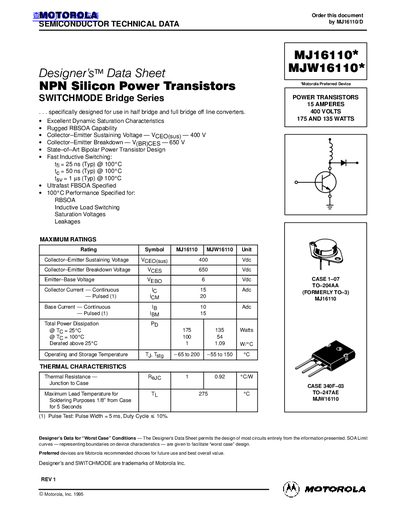

This document is a Designer's Data Sheet for the Motorola MJ16110, an NPN silicon power transistor specifically designed for use in half bridge and full bridge off-line converters. The device features 15 amperes of continuous collector current, 400 volts of collector-emitter sustaining voltage, and 175 watts of power dissipation at 25°C.
The datasheet provides detailed maximum ratings, electrical characteristics, and typical static and dynamic characteristics. It includes specific information on switching times, safe operating areas (SOA) for inductive and resistive loads, and typical static characteristics graphs. The document also details the test circuits used to measure dynamic saturation voltage and switching performance.
| Collector Current (Continuous) | 15 A |
|---|---|
| Collector-Emitter Sustaining Voltage | 400 V |
| Collector-Emitter Breakdown Voltage | 650 V |
| Total Power Dissipation @ 25°C | 175 Watts |
| Operating Temperature Range | -65 to 200 °C |
| Thermal Resistance Junction-to-Case | 0.92 °C/W |
It is specifically designed for use in half bridge and full bridge off line converters.
The typical fall time (tfi) is 25 ns at 100°C.
The maximum collector-emitter sustaining voltage is 400 V.
