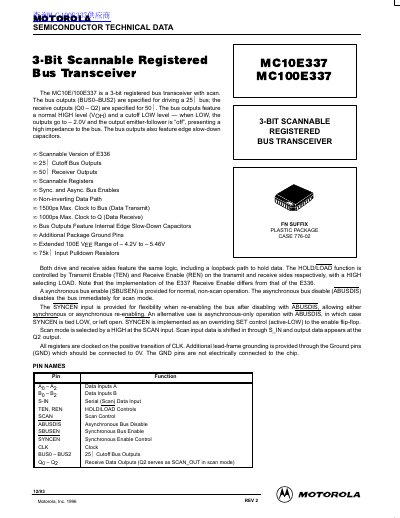

MC10E/100E337 is a 3-bit registered bus transceiver with scan.
The document describes the MC10E337 and MC100E337, which are 3-bit registered bus transceivers featuring scan functionality. The device includes 25Ω cutoff bus outputs and 50Ω receiver outputs, designed to drive a 25Ω bus while receiving from a 50Ω source.
| Bus Output Cutoff Voltage | -2.0V to -2.1V |
|---|---|
| Receiver Output Impedance | 50Ω |
| Bus Output Impedance | 25Ω |
| Package Type | PLCC |
The maximum clock to bus delay is 1500ps.
The extended voltage range is from -4.2V to -5.46V.
