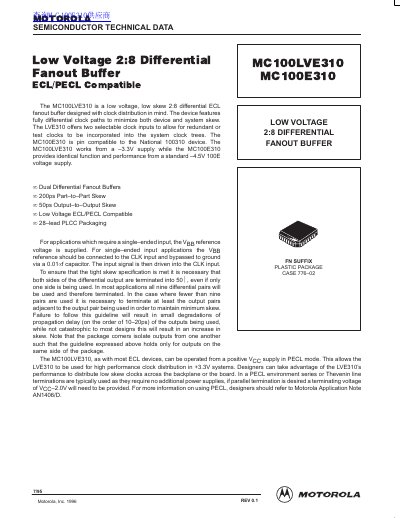

The MC100LVE310 is a low voltage, low skew 2:8 differential ECL fanout buffer designed with clock distribution in mind. The device features fully differential clock paths to minimize both device and system skew. The LVE310 offers two selectable clock inputs to allow for redundant or test clocks to be incorporated into the system clock trees. The MC100E310 is pin compatible to the National 100310 device. The MC100LVE310 works from a –3.3V supply while the MC100E310 provides identical function and performance from a standard –4.5V 100E voltage supply.
The document describes the MC100LVE310 and MC100E310, which are low voltage, low skew 2:8 differential ECL fanout buffers designed for clock distribution. The MC100LVE310 operates from a -3.3V supply, while the MC100E310 operates from a standard -4.5V supply, with both devices being pin compatible to the National 100310 device.
| Package Type | 284lead PLCC |
|---|---|
| Part-to-Part Skew | 200ps |
| Output-to-Output Skew | 50ps |
| Power Supply Voltage (LVE310) | -3.3V |
| Power Supply Voltage (E310) | -4.5V |
| Propagation Delay (Differential) | 525ps (Typ) |
| Within-Device Skew | 75ps (Typ) |
The MC100LVE310 works from a -3.3V supply while the MC100E310 provides identical function and performance from a standard -4.5V voltage supply.
Yes, the MC100E310 is pin compatible to the National 100310 device.
