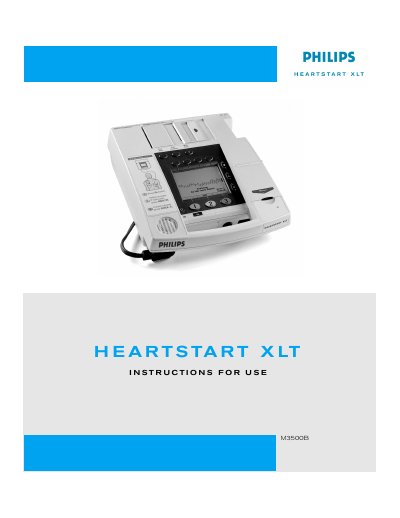

This document is the instructions for use of the M3500B HeartStart XLT defibrillator/monitor
The Philips M3500B HeartStart XLT is a semi-automatic external defibrillator designed for use by healthcare professionals. This document serves as the Instructions for Use, covering safety considerations, operational procedures for both AED (Automatic External Defibrillation) and Manual modes, and monitoring functions such as ECG and SpO2.
The guide details how to prepare the device, connect patient cables and sensors, perform defibrillation shocks, conduct synchronized cardioversion, and manage noninvasive pacing. It also includes comprehensive sections on maintenance, operational checks, battery management, troubleshooting common issues, and configuring system settings via a data card.
| Waveform Type | Biphasic Truncated Exponential |
|---|---|
| Charge Time (Battery) | Less than 3 seconds to 200 Joules |
| Patient Impedance Range | 25 to 180 Ohm |
| Manual Output Energy Levels | 5, 10, 25, 50, 70, 100, 150, 200 Joules |
| Synchronizer Delay | Less than 60 msec from peak R-wave to peak current |
No, this product is not intended for home use and federal law restricts its sale or order by a physician.
The charge time is less than 3 seconds to 200 Joules when using a new, fully charged M3516A SLA battery pack at 25°C.
The available manual output energy levels are 5, 10, 25, 50, 70, 100, 150, and 200 Joules.
