BC369 is a PNP medium power transistor from Philips Semiconductors. It features high current (max. 1 A) and low voltage (max. 20 V). It is used in general purpose switching and amplification as well as power applications, such as audio output stages.

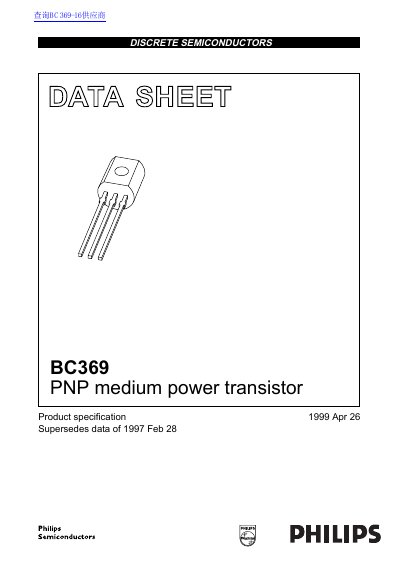

This document is a product specification datasheet for the Philips BC369, a PNP medium power transistor. It covers general features such as high current capability (max 1 A) and low voltage operation (max 20 V), suitable for general-purpose switching, amplification, and audio output stages.
| Collector current (DC) | -1 A |
|---|---|
| Peak collector current | -2 A |
| Total power dissipation | 0.83 W |
| Collector-base voltage | -32 V |
| Collector-emitter voltage | -20 V |
| Thermal resistance (junction to ambient) | 150 K/W |
The maximum DC collector current is -1 A, with a peak collector current of -2 A.
It is used for general purpose switching and amplification, as well as power applications such as audio output stages.
The transistor is available in a TO-92; SOT54 plastic package.
