The document provides information about the features and characteristics of the Philips Semiconductors Triacs MAC223A8X. This product is a passivated triac in a full pack, plastic envelope, designed for applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. It is commonly used in motor control, industrial and domestic lighting, heating, and static switching applications.

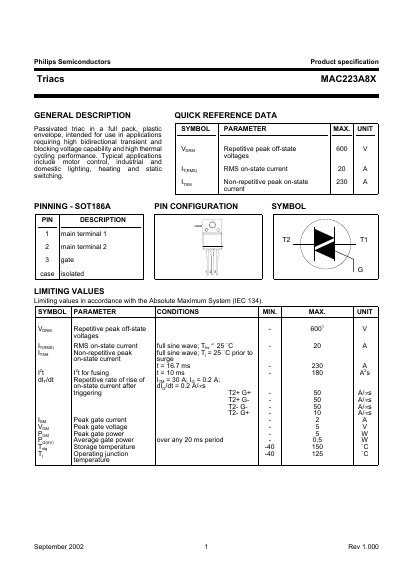

This document is a product specification sheet for the MAC223A8X, a passivated triac designed in a full pack plastic envelope (SOT186A). It is intended for applications requiring high bidirectional transient and blocking voltage capability, such as motor control, industrial lighting, heating, and static switching.
The datasheet provides comprehensive electrical characteristics including maximum on-state current of 20 A RMS and non-repetitive peak on-state current up to 230 A. It also details thermal resistances with and without heatsink compound, isolation limits, and dynamic parameters like gate trigger voltage and critical rates of rise for off-state voltage.
| Repetitive peak off-state voltages | 600 VV |
|---|---|
| Thermal resistance junction to ambient (free air) | 55 K/W |
| Gate trigger current (T2+ G-) | 10 mA |
| On-state voltage | 1.3 V to 1.55 V |
The device is available in a full pack plastic envelope, specifically SOT186A.
