This document provides technical data for the AUMA AD00-071.2-4-0 actuator. It includes a legend defining various switch types such as torque switches, limit switches, and thermoswitches, along with their specific functions like closing or opening based on rotation direction.

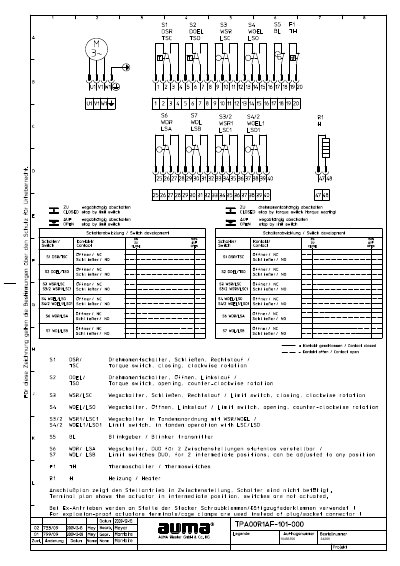

The document also presents terminal plans for the actuator in an intermediate position, noting that switches are not actuated in this state. It specifies that for explosion-proof actuators, terminal blocks or cable clamps are used instead of plug/socket connectors. This manual is written in German.
| Document Date | 2009-12 |
|---|---|
| Manufacturer | AUMA Riester GmbH & Co KG |
For explosion-proof actuators, terminal blocks or cable clamps are used instead of plug/socket connectors.
No, the terminal plan shows the actuator in an intermediate position where the switches are not actuated.
