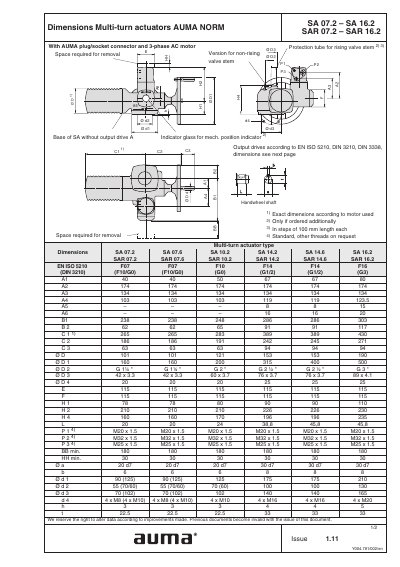

This document is about the dimensions of SA 07.2 - SA 16.2 SAR 07.2 - SAR 16.2 multi-turn actuators
This document provides technical data for AUMA NORM multi-turn actuators in the SA 07.2 to SA 16.2 and SAR 07.2 to SAR 16.2 series. These units are designed for use with an AUMA plug/socket connector and a 3-phase AC motor.
| Series | SA 07.2 — SA 16.2, SAR 07.2 — SAR 16.2 |
|---|---|
| Motor Type | 3-phase AC motor |
| Connector Type | AUMA plug/socket connector |
| Output Drive Standards | EN ISO 5210, DIN 3210, DIN 3338 |
The actuators support output drives according to EN ISO 5210, DIN 3210, and DIN 3338.
Yes, exact dimensions depend on the specific motor used.
