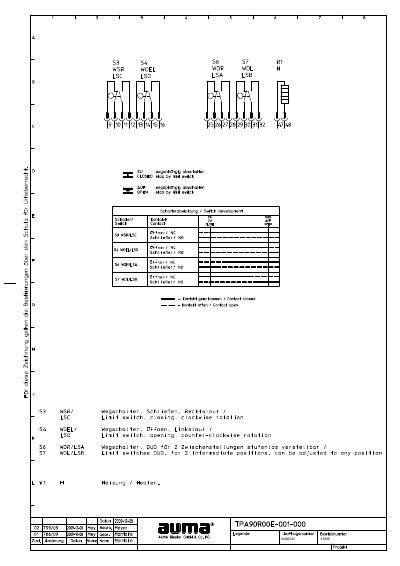

This document provides technical data for the AUMA TPA90R00E-001-000 switch development. It details the configuration for dependent switching, including closed and open states triggered by limit switches.
The document specifies the switch development for clockwise and counter-clockwise rotations, noting that the switches can be adjusted to any position for two intermediate positions. It also includes information regarding the heater component. This manual is written in German.
The document describes limit switches that stop rotation when a specific position is reached, either for closing or opening operations.
The switches can be adjusted to any position for two intermediate steps.
The opening function occurs during counter-clockwise rotation.
