This document is the product manual of AUMA NORM multi-turn actuator. It mainly introduces the model, function, parameters and specifications of the product.

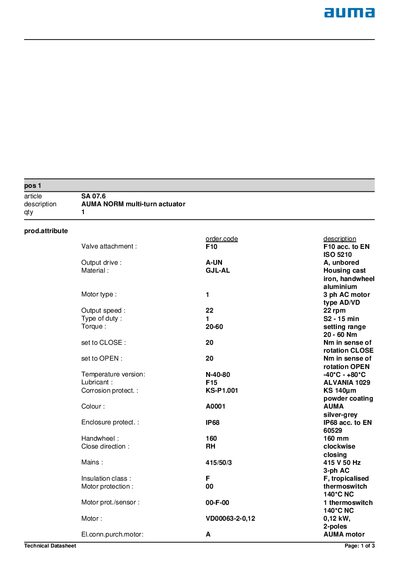

The document provides a technical datasheet for the AUMA SA 07.6 NORM multi‑turn actuator. It lists product attributes such as torque range, output speed, enclosure protection, and motor type.
Detailed mechanical and electrical parameters are given, including reduction gearing, limit switches, heater power, nominal voltage, power, speed, and insulation class. The sheet also contains motor specifications and wiring information.
| Torque range | 20‑60 Nm |
|---|---|
| Enclosure protection | IP68 |
| Nominal voltage | 415 V |
| Nominal power | 0.120 kW |
| Nominal speed | 2 800 rpm |
| Operating temperature range | -40 °C to +80 °C |
The torque can be set between 20 and 60 Nm.
It is protected to IP68 according to EN 60529.
The nominal voltage is 415 V.
