Operation instructions for AUMA part-turn actuators (types SG and SGR) covering safety, installation, electrical connection, limit setting, and maintenance.

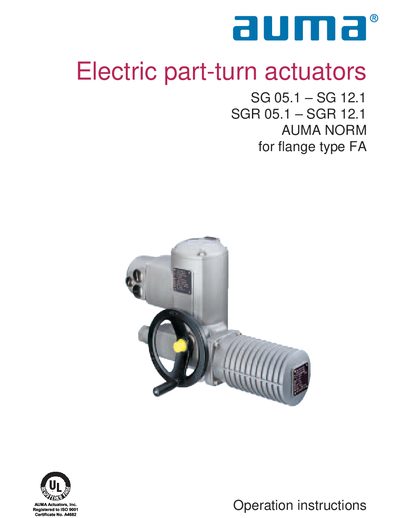

This manual provides operation instructions for AUMA NORM electric part-turn actuators of the type ranges SG 05.1 – SG 12.1 and SGR 05.1 – SGR 12.1 designed for flange type FA valves. The document details safety requirements, commissioning procedures, and manual operation methods.
| Motor type | 3-ph AC asynchronous motor, type IM B9 according to IEC 34 |
|---|---|
| Swing angle (Standard) | 80° to 110° adjustable |
| Ambient temperature (SG, 3-phase AC motor) | - 20 to + 80 °C |
| Lifetime (SG 05.1/SG 07.1) | 20,000 operating cycles for 90° |
AUMA actuators are designed for the operation of industrial valves, e.g. butterfly valves and ball valves.
Work on the electrical system or equipment must only be carried out by a skilled electrician himself or by specially instructed personnel under the control and supervision of such an electrician.
When reversing, a pause of at least 100 ms is required.
