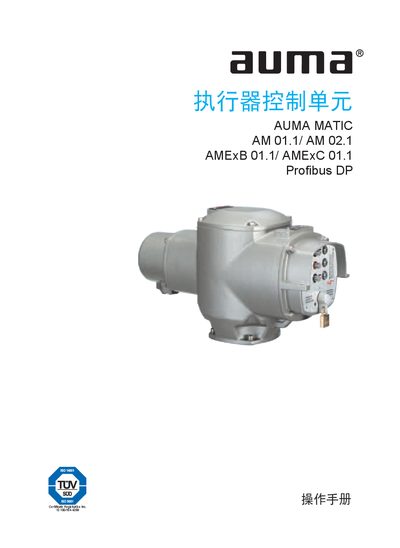

This manual covers the installation, operation, and maintenance of AUMA MATIC AM, AMExB, and AMExC control units for actuators with Profibus DP communication.
The document serves as a comprehensive user guide for the AUMA MATIC series of control units designed for use with actuators. It details technical specifications including voltage ratings (220V to 500V), power outputs up to 7.5kW, and environmental operating conditions ranging from -60°C to +70°C depending on the model.
The manual provides specific instructions for Profibus DP integration, covering system configuration, wiring diagrams, and GSD file usage. It distinguishes between standard models (AM) and explosion-proof variants (AMExB/AMExC), offering detailed safety procedures and installation guidelines for both indoor and hazardous area applications.
| Operating Voltage (Standard) | 220...500 V AC |
|---|---|
| Operating Voltage (Ex) | 110...500 V AC |
| Frequency | 50/60 Hz |
| Protection Class | IP68 |
| Operating Temperature (Standard) | -25°C ... +70°C |
| Operating Temperature (Ex) | -40°C ... +70°C |
The device supports Profibus DP communication.
The standard model has a protection class of IP68.
