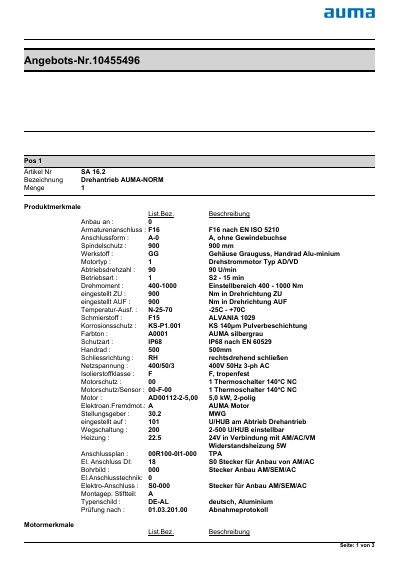

The document describes a Drehantrieb called AUMA-NORM, which has various features and characteristics including Armaturenanschluss, Anschlussform, Spindelschutz, Werkstoff, Motortyp, Abtriebsdrehzahl, Betriebsart, Drehmoment, Temperatur-Ausf., Schmierstoff, Korrosionsschutz, Farbton, Schutzart, Handrad, Schliessrichtung, Netzspannung, Isolierstoffklasse, Motorschutz, Motorschutz/Sensor, Motor, Stellungsgeber, Drehantrieb Wegschaltung, Heizung, Anschlussplan, Bohrbild, El.Anschlusstechnik, Montagep. Stiftteil, and Typenschild.
This document provides technical specifications for the AUMA SA 16.2 rotary actuator (AUMA-NORM), which includes an aluminum housing, gray cast iron gearbox, and a three-phase AC motor with a rated power of 5.0 kW.
The unit is equipped with the integrated control unit type AC 01.2 (AUMATIC). Key features include a torque setting range of 400-1000 Nm, an IP68 protection rating, and operation within a temperature range of -25°C to +70°C. This manual is written in German.
| Torque setting range | 400 - 1000 Nm |
|---|---|
| Motor power | 5.0 kW |
| Rated voltage | 400 V 50 Hz 3-ph AC |
| Protection rating | IP68 |
| Operating temperature range | -25°C - +70°C |
The motor has a rated power of 5.0 kW.
The torque can be adjusted between 400 Nm and 1000 Nm.
The device has an IP68 protection rating according to EN 60529.
