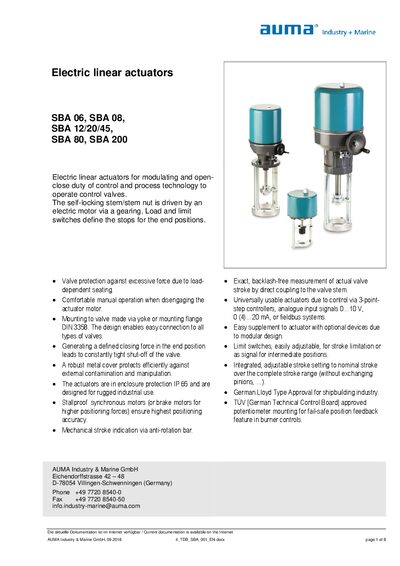

Electric linear actuators SBA 06, SBA 08, SBA 12/20/45, SBA 80, SBA 200 for modulating and open-close duty of control and process technology to operate control valves
The AUMA SBA series includes models SBA 06, SBA 08, SBA 12/20/45, SBA 80 and SBA 200. These electric linear actuators are designed for modulating and open‑close duty in control and process technology, featuring self‑locking stems, IP 65 protection and optional modular accessories.
The manual provides technical data, wiring diagrams, mounting options, limit‑switch settings and dimension sheets for each model, as well as information on supply voltages, positioning forces and optional accessories such as potentiometers and profibus modules.
| Enclosure protection | IP 65 |
|---|---|
| Positioning force (SBA 06) | 0.6 kN / 0.9 kN / 1.2 kN |
| Power consumption (230 V) | 4 VA / 5 VA / 11 VA |
| Maximum stroke | 35 mm / 40 mm |
The actuators have an enclosure protection rating of IP 65.
Limit switches are easily adjustable and can be set for stroke limitation or as signals for intermediate positions.
The SBA 06 offers positioning forces of 0.6 kN, 0.9 kN and 1.2 kN.
